Jewel FLEX 200W - SP-FLEX-200W
Jewel FLEX 200W - SP-FLEX-200W
Couldn't load pickup availability
A FLEX power supply unit (PSU) is a smaller form factor power supply designed for use in compact computer cases. The term “FLEX” stands for “Small Form Factor Extended,” which refers to the standard size and shape of the unit.
Compared to a standard ATX power supply, an FLEX power supply is shorter and more compact, making it ideal for use in small form factor cases, such as mini-ITX and micro-ATX systems. Despite its smaller size, an FLEX PSU can still provide ample power to run a wide range of computer components.

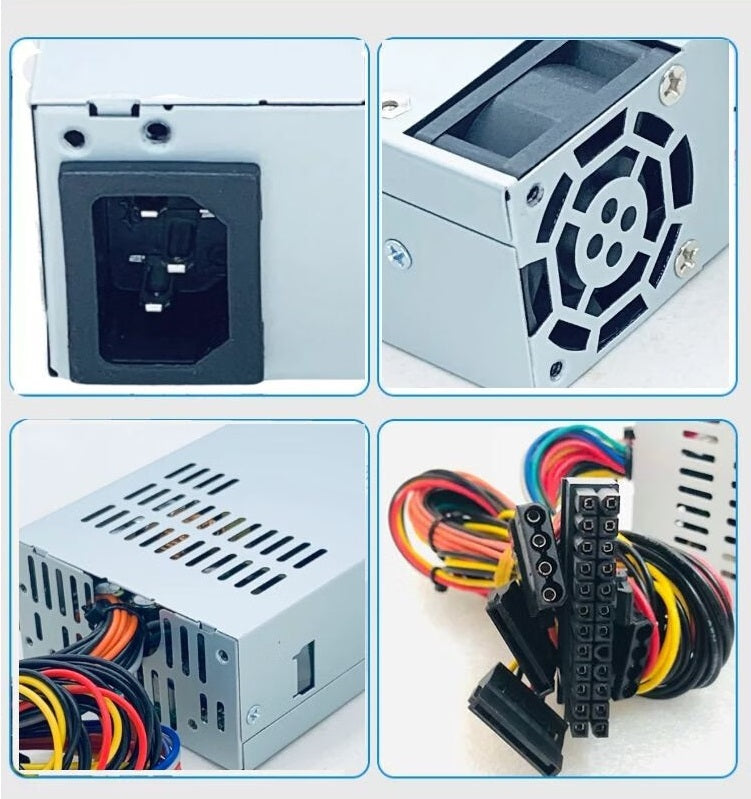

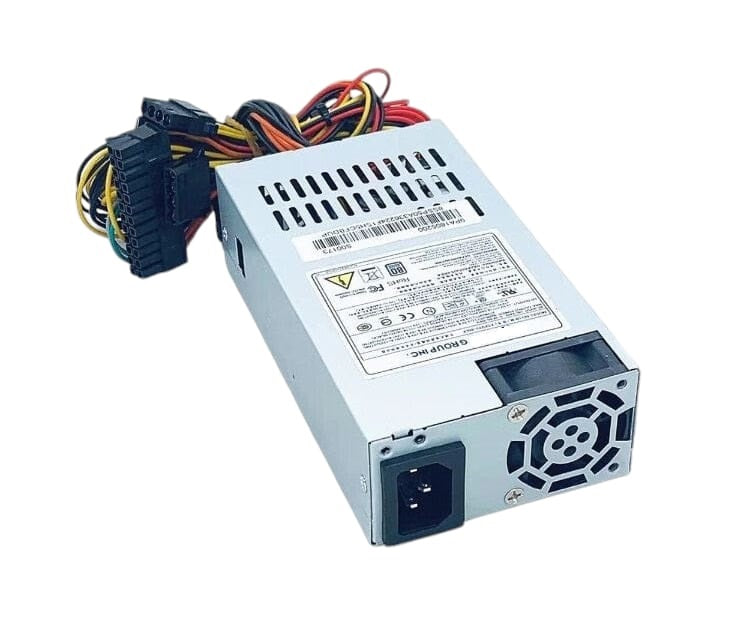

This Spire Jewel FLEX Power Supply is a short model and provides sufficient power for the small form factor systems – stable power delivery, hi-efficiency, optimal cooling, low noise operation and long term reliability. The single 40mm fan provides sufficient airflow and low noise operation. It is designed for all AMD and Intel based systems and complies with 12V FLEX and MINI ITX 3.0 specification.
FEATURES
- FLEX Ver.3.0 and ATX Ver.1.3 Specification Compliant
- Compliant with ErP 2013
- One single independent 12V railI/O Short Circuit- Overload- & Over current-Protection
- 2 Years Warranty
SPECIFICATIONS
| EAN |
6943051292007 |
|---|---|
| Brand |
Spire |
| Unit Weight |
0.5 |
| Unit Dimension (cm) |

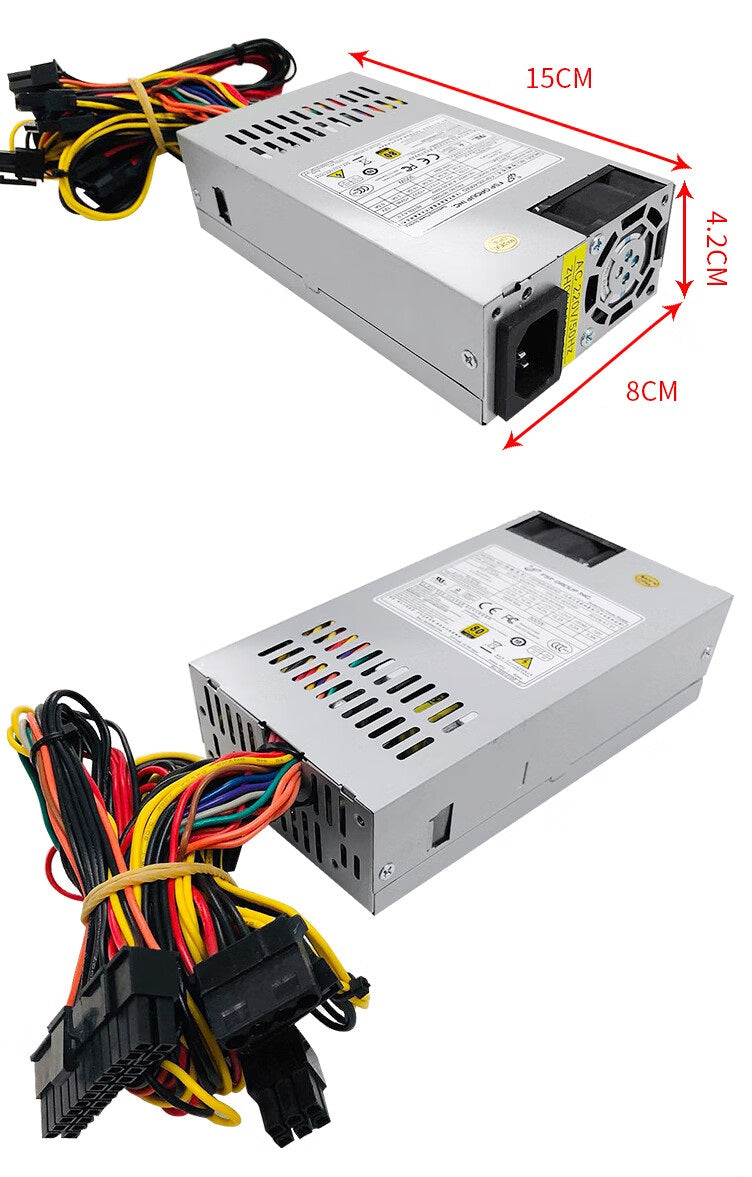

15 x 8 x4.2 |
| Package Weight (kg) |
0.7 |
| Package Dimension (cm) |
23.5 x 9.5 x 14 |
| Certification |
CE/RoHS |
| Connectors |

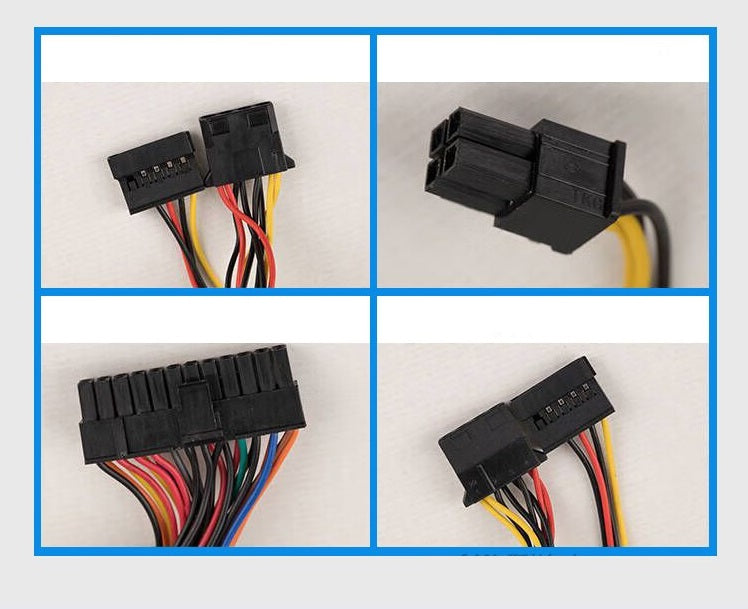

20+4pin 1PCS, 12V 4pin 1PCS,SATA 2PCS,IDE(Molex) 4pin 2PCS |
| Cooling |
One 40mm cooling fan |
| Efficiency |
Energy Star |
| Features |
Intel FLEX 12V 3.0 Specification Compliant Supports the newest Intel and AMD Microprocessors I/O Short Circuit & Overload/OVP/OLP/SCP Protection SATA Power Connector |
| Frequency |
50~60 Hz |
| Gaming |
No |
| Hold Up Time |
16 ms(min) |
| LED Fan |
No |
| Life Expectancy (HRS) |
100,000 Hours |
| Material |
SECC |
| Material Thickness (mm) |
0.5 |
| Modular Cables |
NO |
| Noise Level (dBA) |
26 dBA Max |
| Nominal Power (w) |
200 |
| Operating Temperature (°C) |
0~40 |
| Packaging Includes |
Mounting screws 5pcs |
| Packaging Type |
Yellow box |
| P.G. Signal |
100~500ms |
| Rated Current (A) |
3A for 220VAC Input |
| Storage Temperature (°C) |
-20~60 |
| Voltage AC (INPUT) |
200 ~ 240 |
| Voltage Protection |
+12V trip point 13.4V – 15.6V |
| Warranty |
2 years |
-
