Voyager PWM Intel CPU cooler - SP-HZ-SP607
Voyager PWM Intel CPU cooler - SP-HZ-SP607

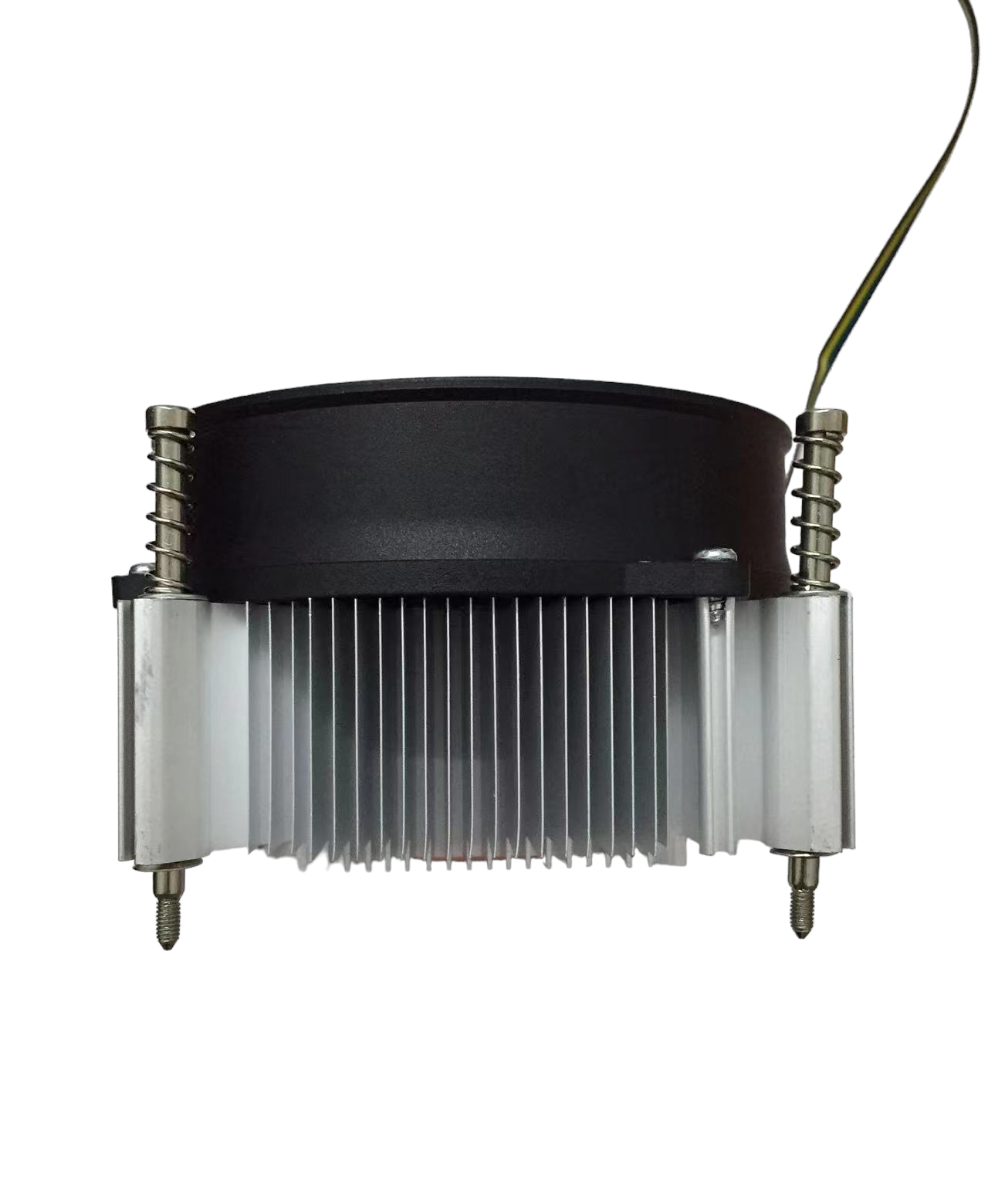

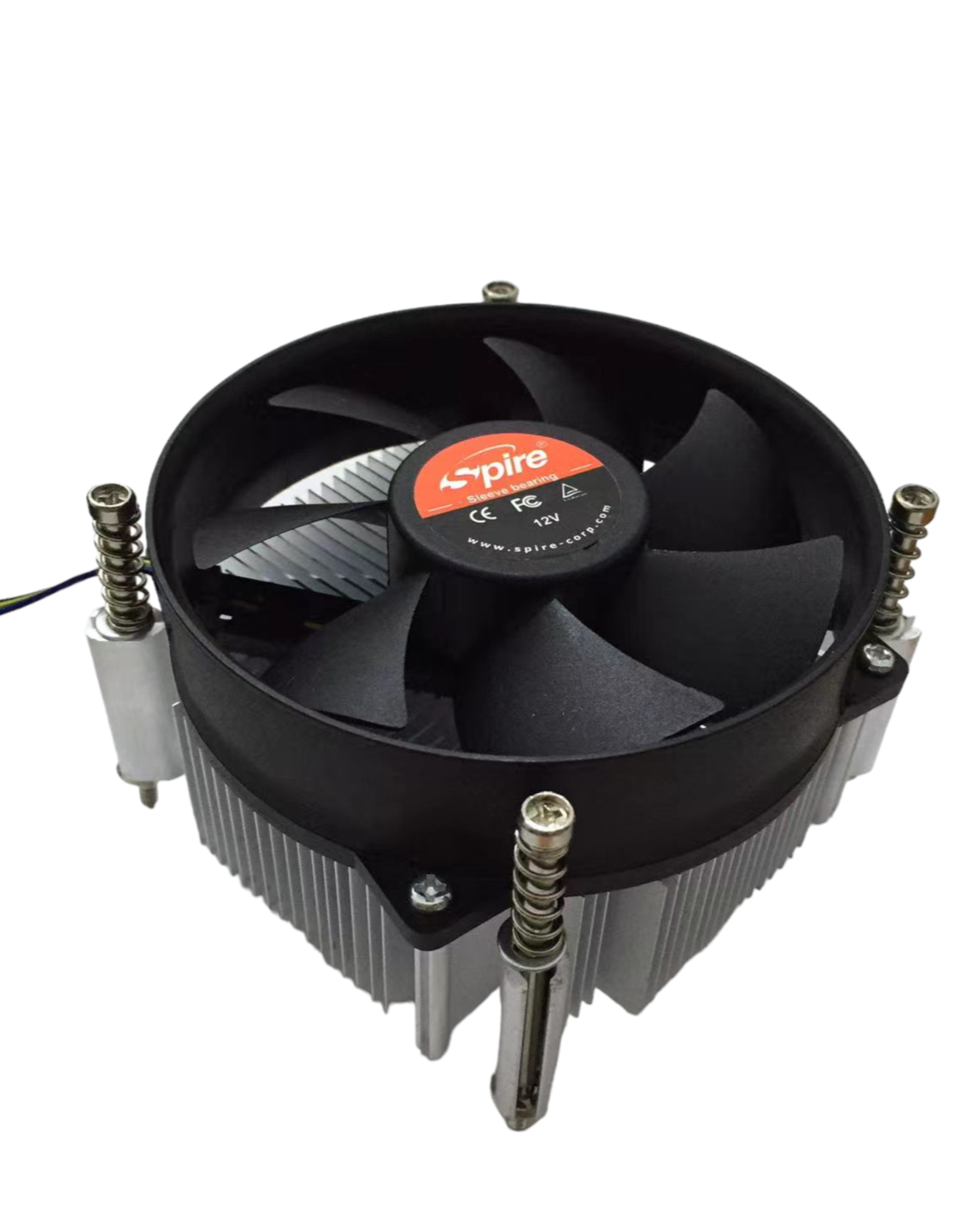

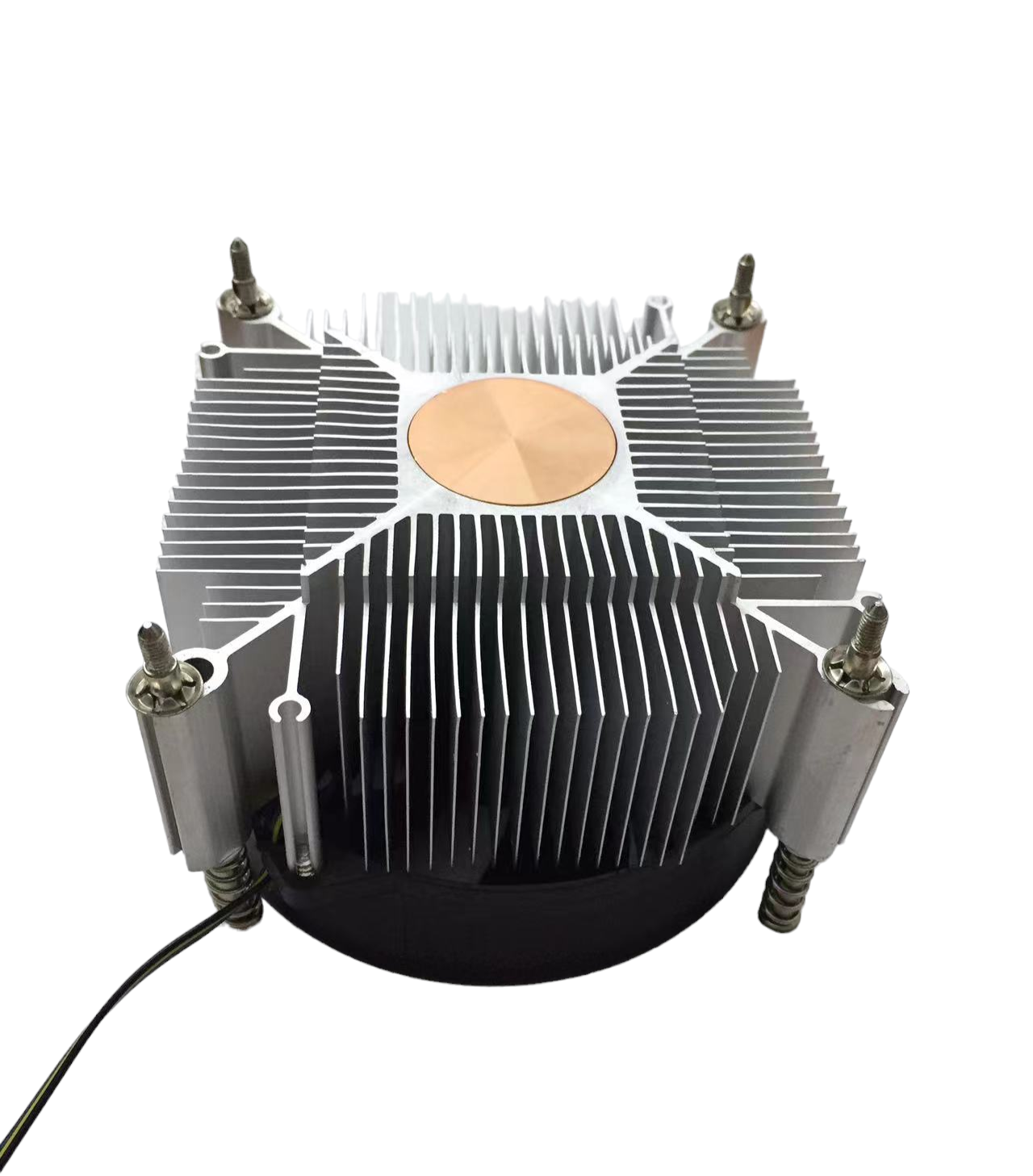

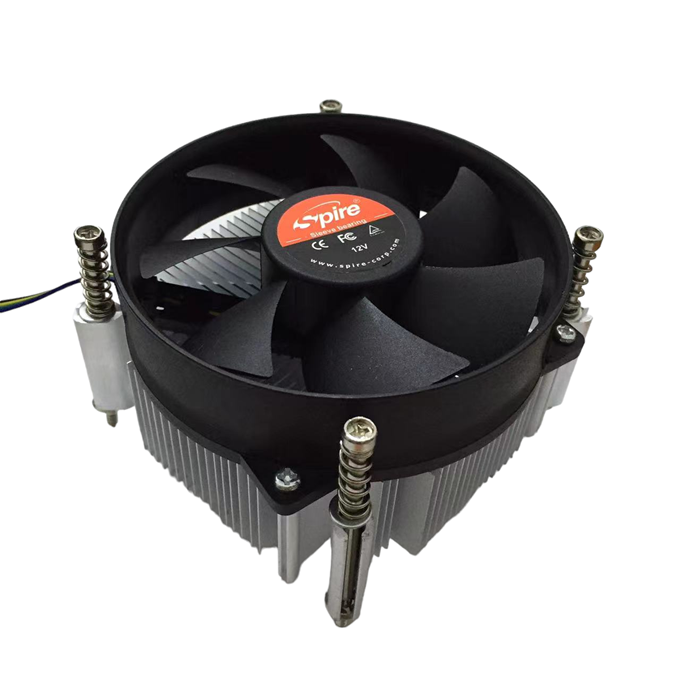

The Spire Voyager PWM is a cost effective Intel system integration CPU cooler. The precise engineered omni-directional heat-sink provides good performance at minimal noise level. The mounted 95x25mm 12VDC fan creates a gentle breeze controlled by the PWM sensor which regulates the fan speed from minimal 800RPM up to maximum 2500RPM. Universal application to all current Intel sockets such as 1366/1700/1150/1151/1155/1156 & 775, which make the Voyager PWM a smart solution for integrators that purely build computers based on Intel processors. Tested up to TDP 85W with a performance rate of 0.376C/W.
FEATURES
- Universal for all Intel sockets

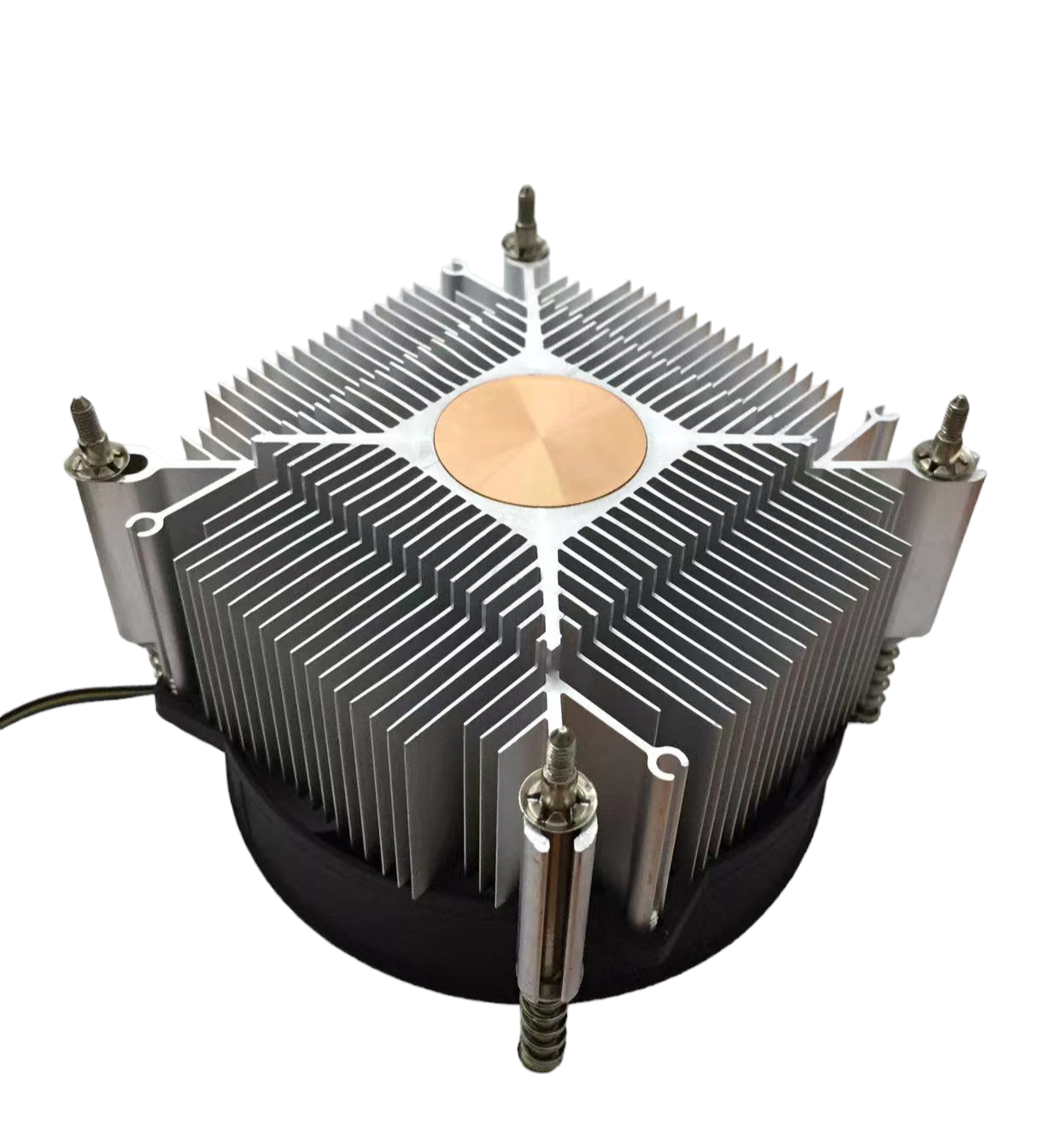

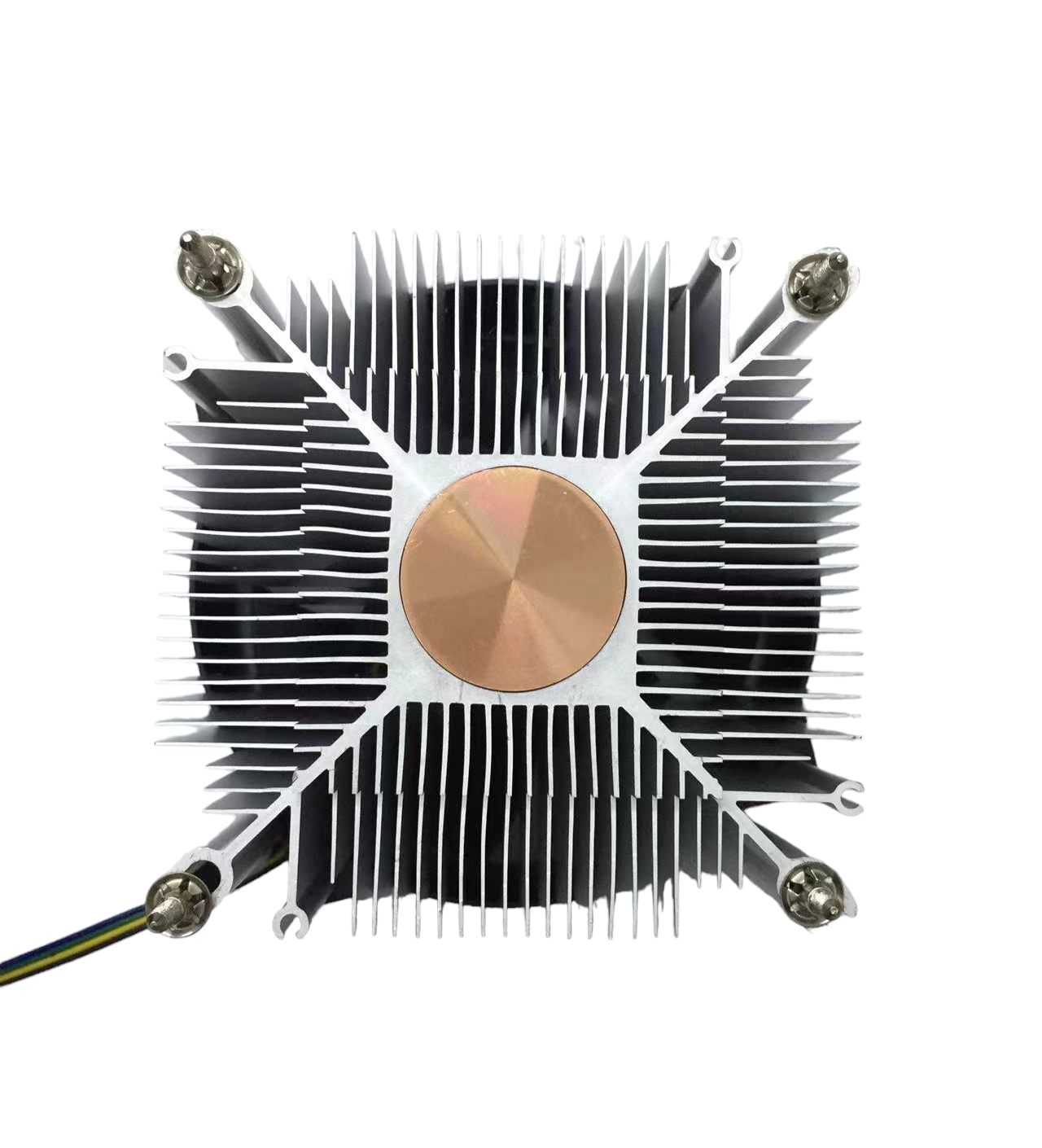

- Aluminum Omni-directional heat-sink

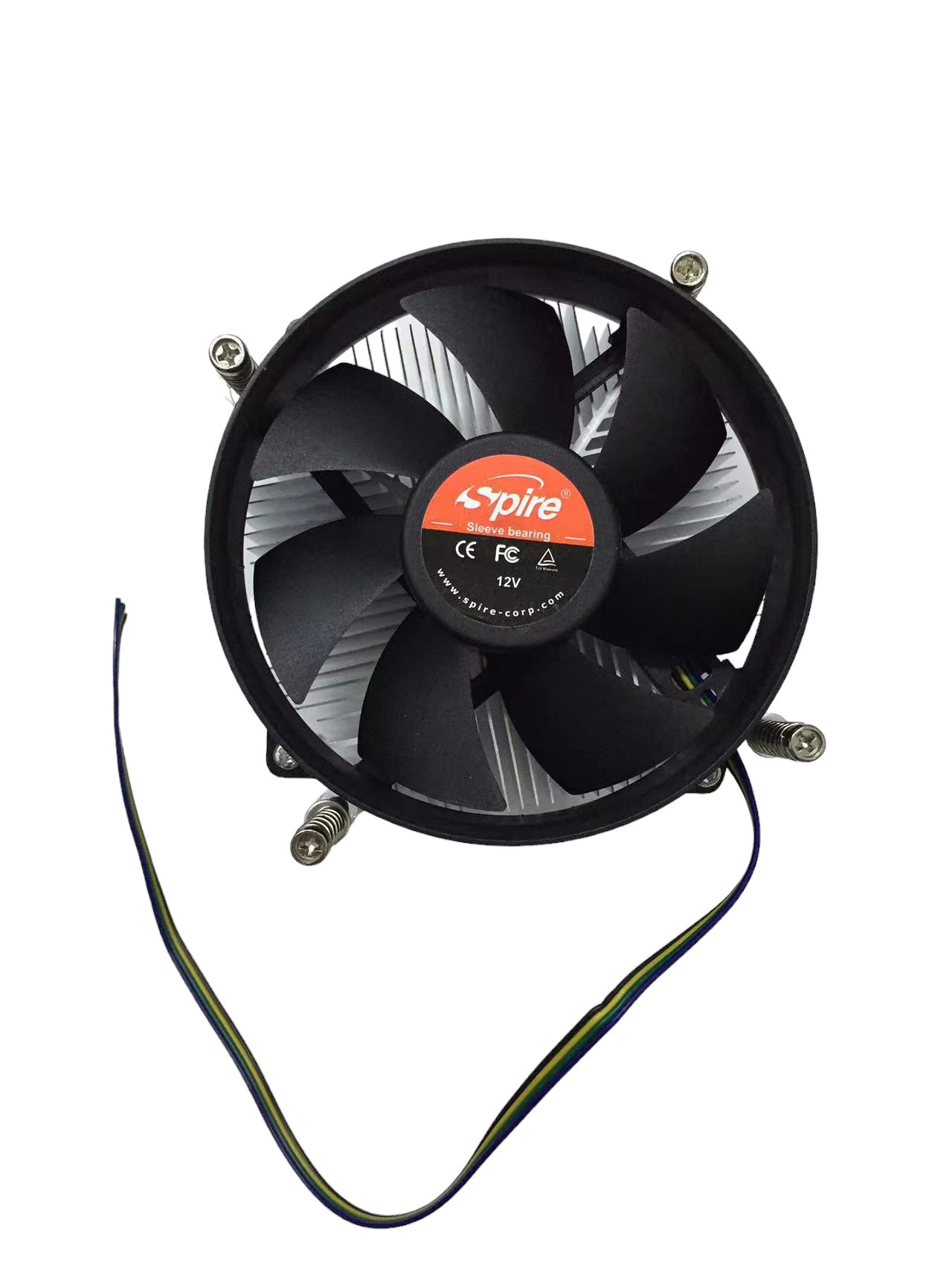

- 95x25mm silent DC fan
- PWM fan speed controlled fan
- Retail packed for safe transport
- S420 Thermal compound included
- Supports 1366/1700/115x & 775 sockets
- 2 years manufacturer warranty
SPECIFICATIONS
EAN |
6943051290881 |
---|---|
Brand |
Spire |
Unit Weight (kg) |
0,3 |
Unit Dimensions (cm) |
9.5 x 9.5 x 6.7 |
Package Weight (kg) |
0.5 |
Package Dimensions (cm) |
10.5×10.5×8.5 |
Bearing Type |
Sleeve bearing |
Cable Length (cm) |
25 |
Certification |
CE/ROHS |
Color |
Fan black + radiator silver |
Connectors |
4 pin MOLEX 2510 PWM |
Fan Size (cm) |
9x9x2,5 |
Fan Type |
DC 12V |
CPU Brand |
INTEL |
Mainboard Support |

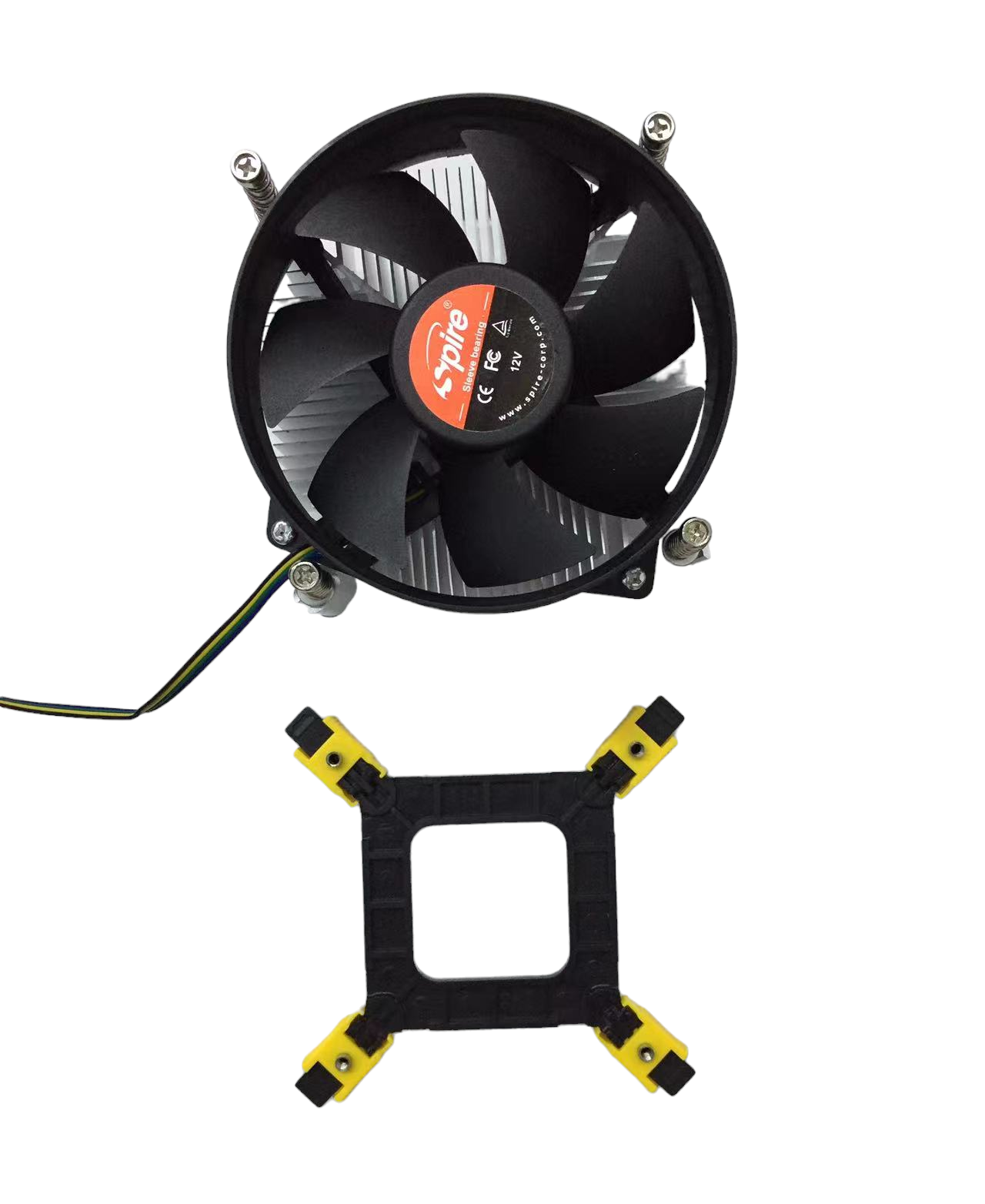

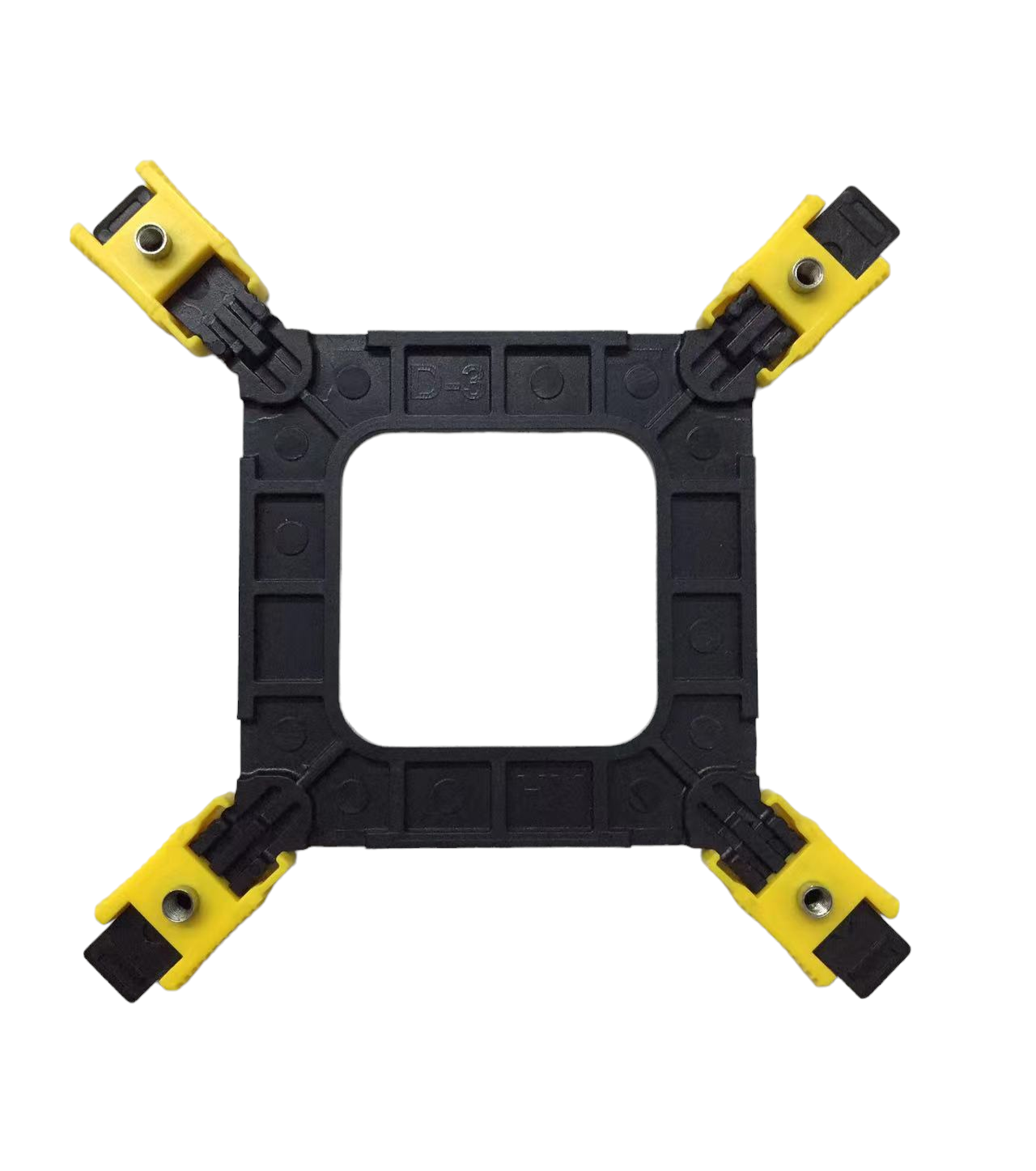

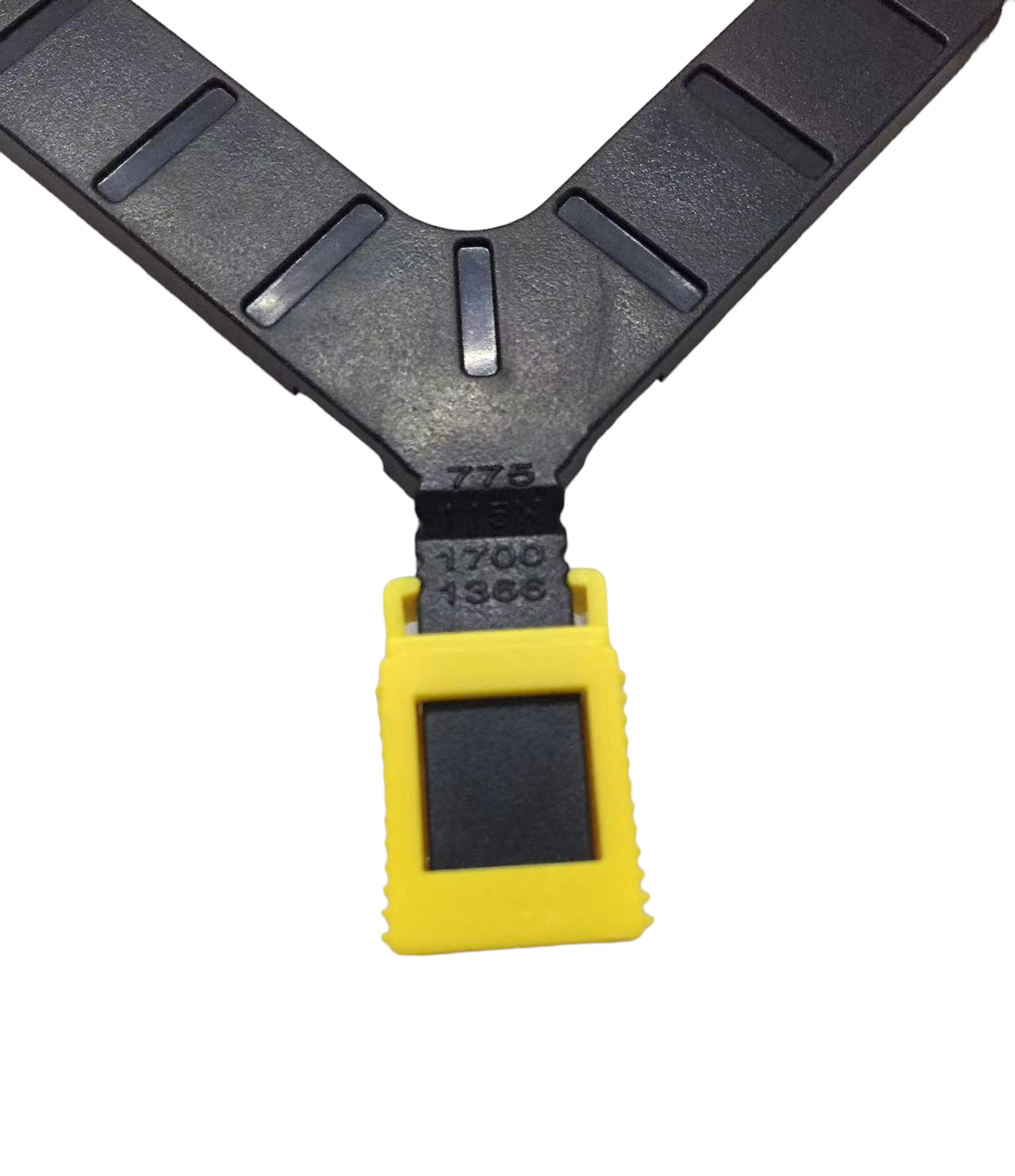

Installation set for Intel 775/115*/1700/1366 |
Material |
Aluminum – Copper |
Rated Current (A) |
0.17 |
Rated Power (W) |
2.04 |
Rated Speed (RPM) +/- 10% |
600-2200 |
Thermal Design Power (W) |
85 |
Warranty |
2 years |
-
