PEARL 500 / SP-ATX-500Z-PPFC
PEARL 500 / SP-ATX-500Z-PPFC
Couldn't load pickup availability
The PEARL series are the new and evolved ATX power supply series aimed at system builders and integrators. Equipped with well selected high-quality components, supplying optimal power under the most demanding circumstances. New highlights of the PEARL series are: Version 2.31 specification compliant, advanced circuit design with better Japanese grade A capacitors and components supporting the newest Intel & AMD multi-core micro-processors. Auto-thermal fan control, maximizing the Pearl’s cooling performance whilst maintaining reduced sound levels. Energy sufficient, PEARL series power supplies are compatible with the Energy Star & EUP energy saving standards. Housed in cool black powdered coated enclosures with embossed Spire logo, the Pearl series are backed by the award winning service program and 2 years manufacturer warranty. Spire – Powered by Innovation.
FEATURES
- ATX Ver.2.31 Specification Compliant
- EMI Shielded VGA/HDD Power
- Connectors Supports the newest Intel & AMD based systems

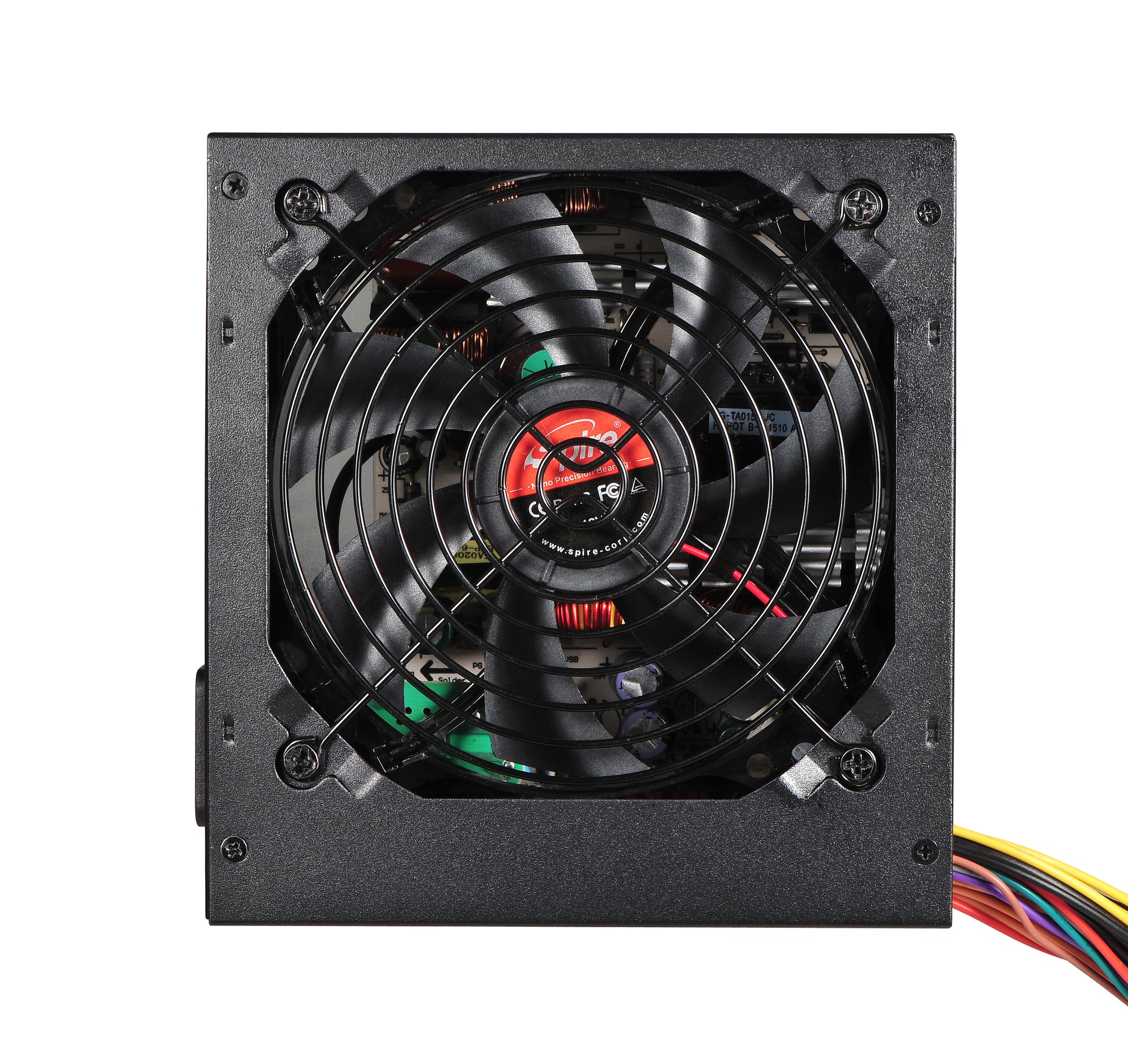

- 120mm sleeve-Tech bearing fan
- PWM variable fan speed, temperature driven and controlled
- Completely silent 16.0 dBA up to 45C / 113F Max noise level 21.0 dBA
- High Efficiency (86%) up to 30% less power consumption
- Compliant with EuP Lot 6 2010: 5Vsb AC input < 1W at standby & off mode
- I/O/OVP/OLP and SCP Short Circuit- Overload- Over Power- & current-Protection
SPECIFICATIONS
| Weight | 2,2 kg |
|---|---|
| EAN |
6943051284545 |
| Package Weight (kg) |
2.2 |
| Package Dimension (cm) |
20 x 26 x 9.6 |
| Certification |
CE/RoHS |
| Color |
black |
| Connectors |

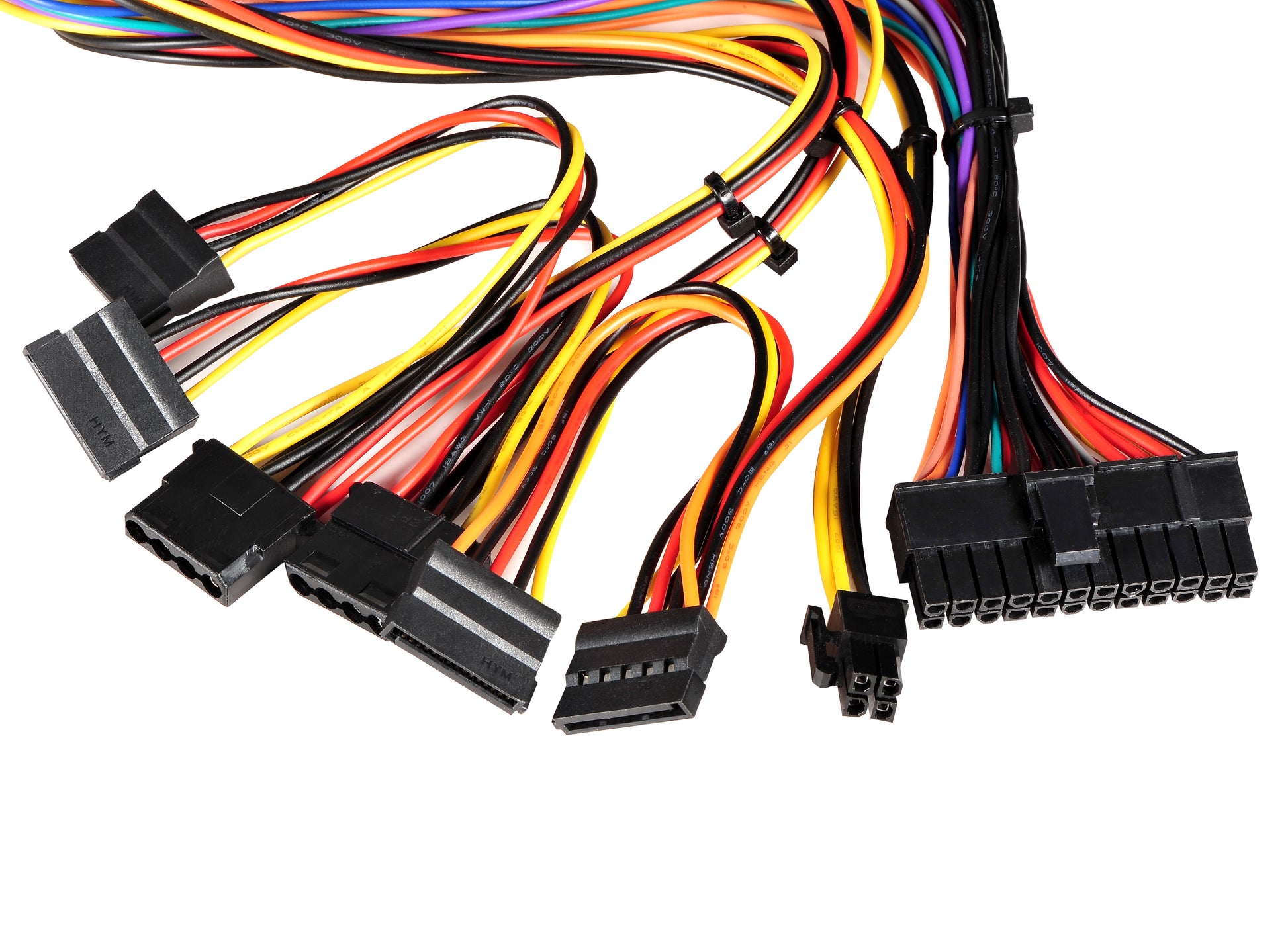

20+4pin 1PCS; 12V4pin 1PCS; SATA 4PCS;IDE(Molex)4pin 2PCS |
| Cooling |

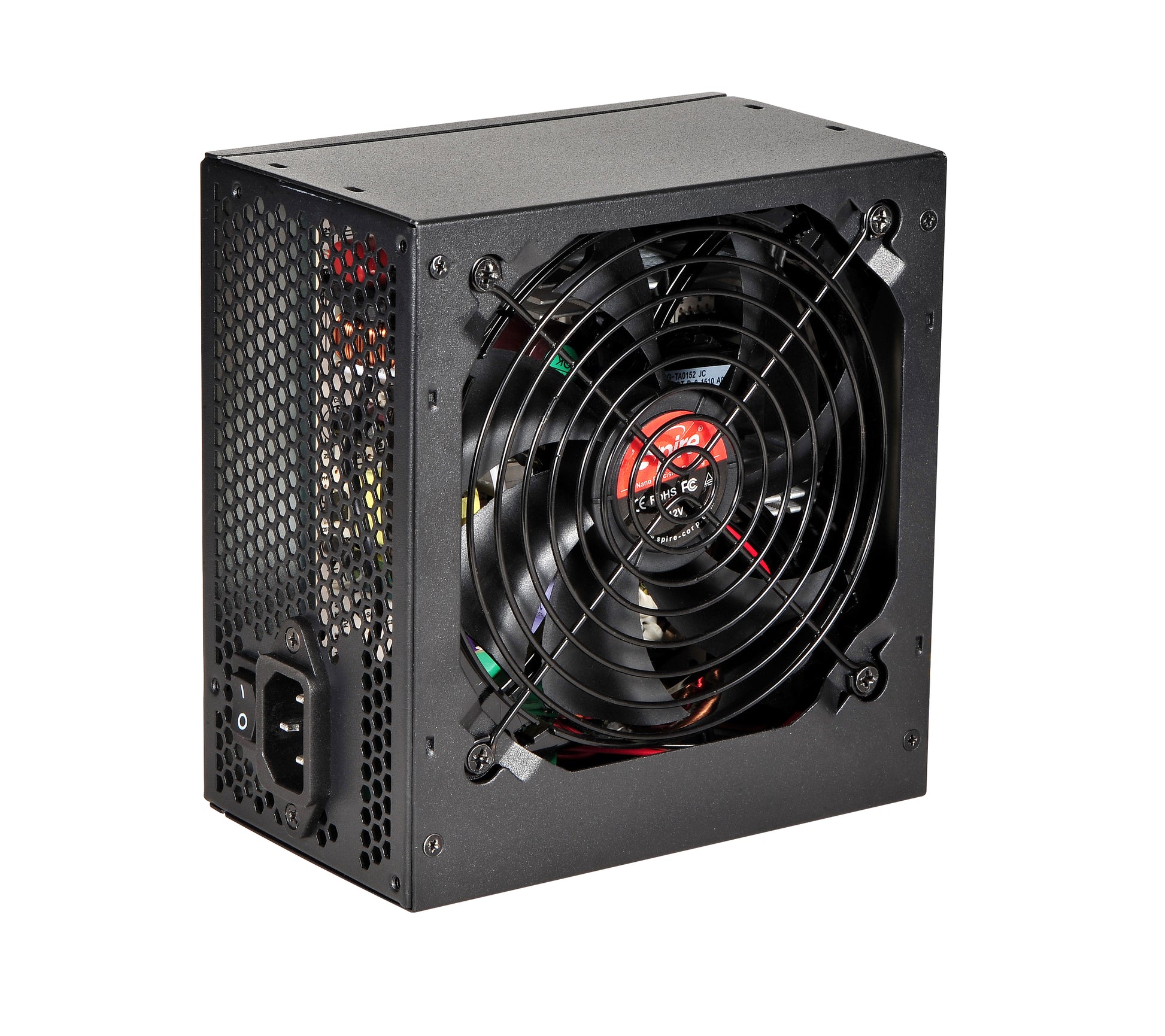

One 120mm cooling fan |
| Brand |
Spire |
| Efficiency |
>80% efficient |
| Features |
Intel Core 2, Core 2 Due, Core 2 Extreme, Celeron, Pentium ,AMD Athlon 64X2,AMD Athlon 64 FX,AMD Athlon 64, Sempron |
| Frequency |
50~60 Hz |
| Gaming |
No |
| Hold Up Time |
16 ms(min) |
| LED Fan |
No |
| Life Expectancy (HRS) |
100,000 Hours |
| Material |
SPCC baking black paint |
| Material Thickness (mm) |
0.6 |
| Modular Cables |
NO |
| Noise Level (dBA) |
21 dBA Max |
| Nominal Power (w) |
500 |
| Operating Temperature (°C) |
0~40 |
| Packaging Includes |
Mounting screws 5pcs |
| Packaging Type |
Yellow box |
| P.G. Signal |
100~500ms |
| Rated Current (A) |
3A for 220VAC Input |
| Storage Temperature (°C) |
-20~60 |
| Voltage AC (INPUT) |
200 ~ 240 |
| Voltage Protection |
+12V trip point 13.4V – 15.6V +5V trip point 5.74V – 7.0V +3.3V trip point 3.76V – 4.3V |
| Warranty |
2 years |
-
