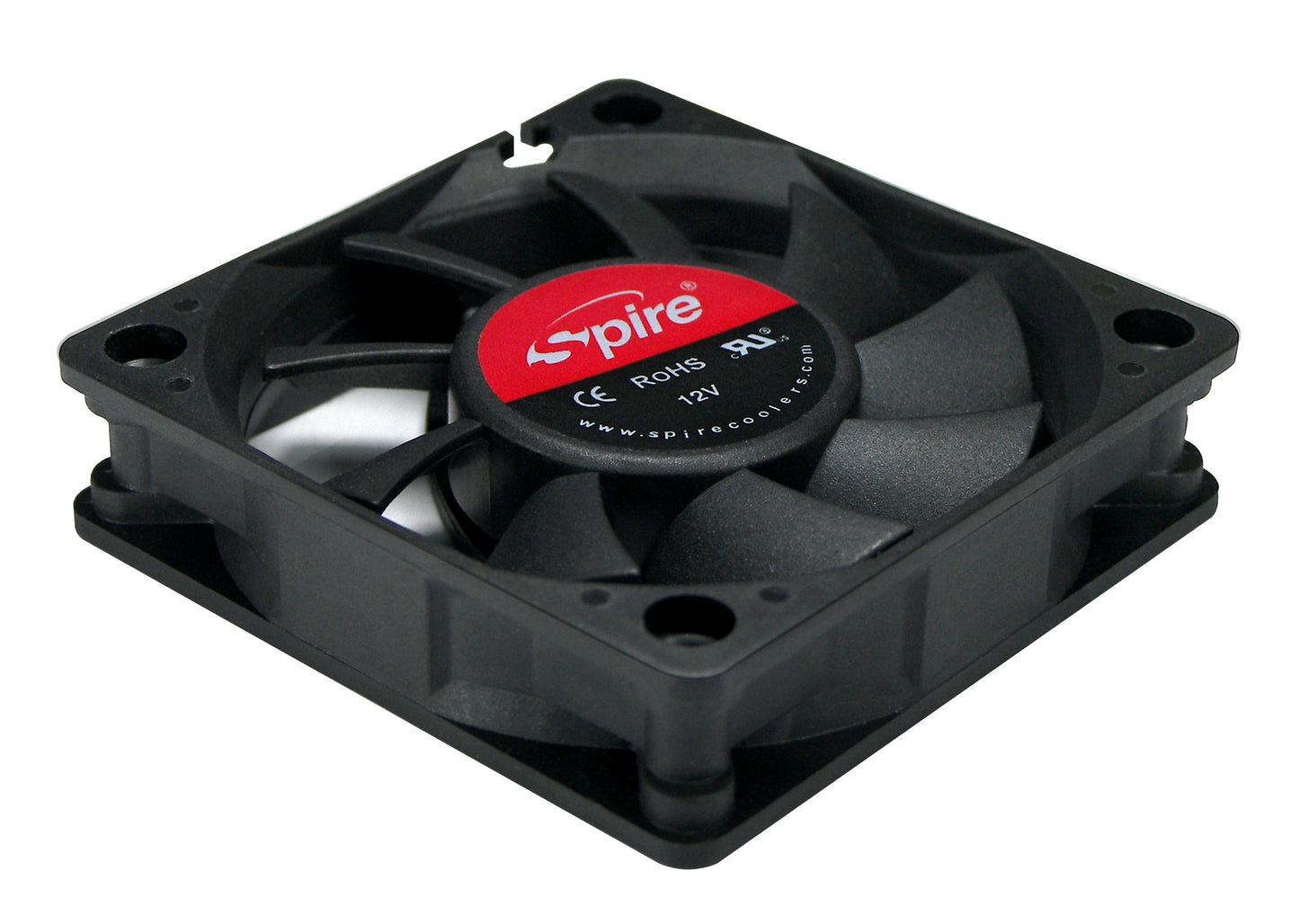

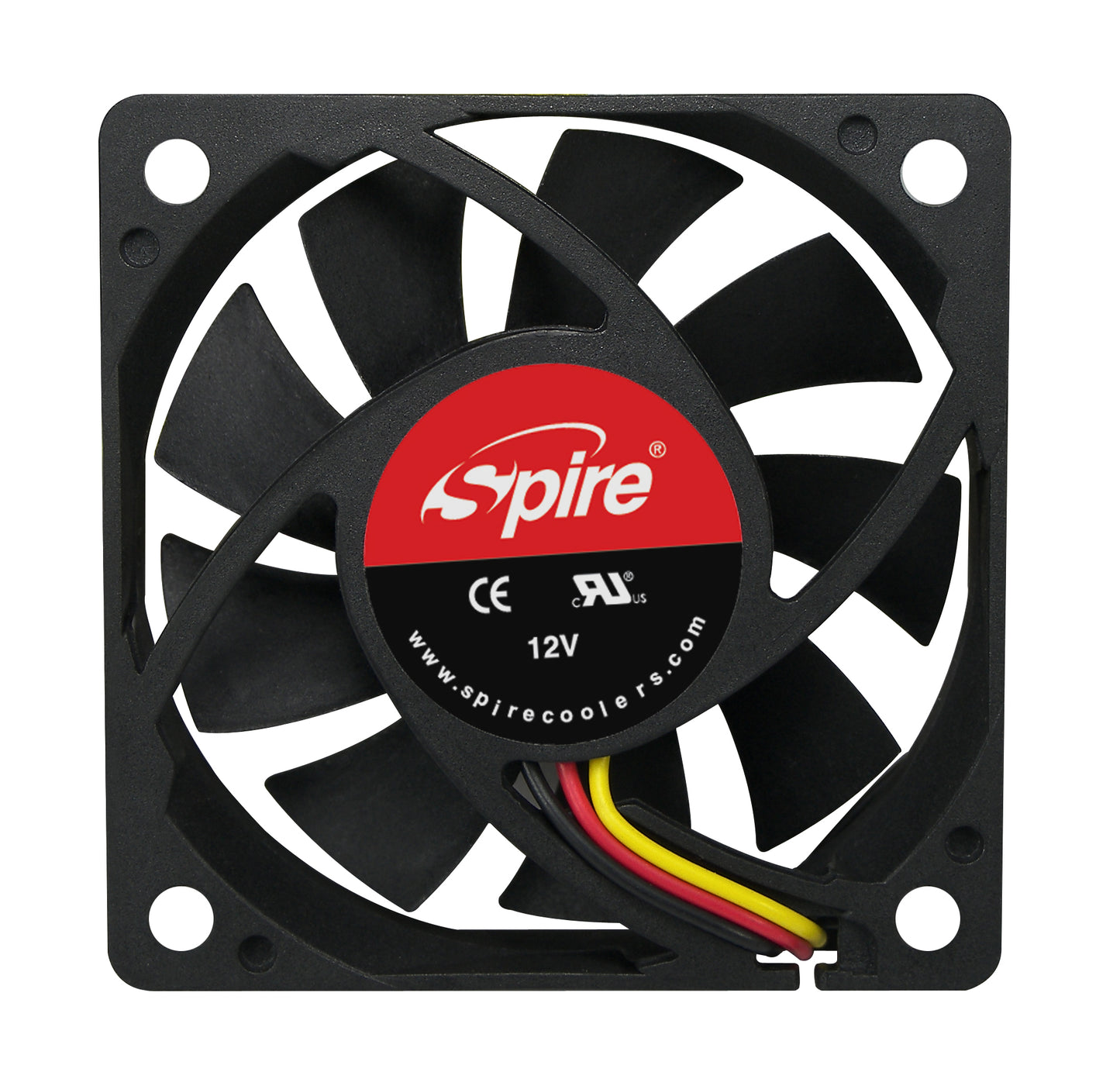

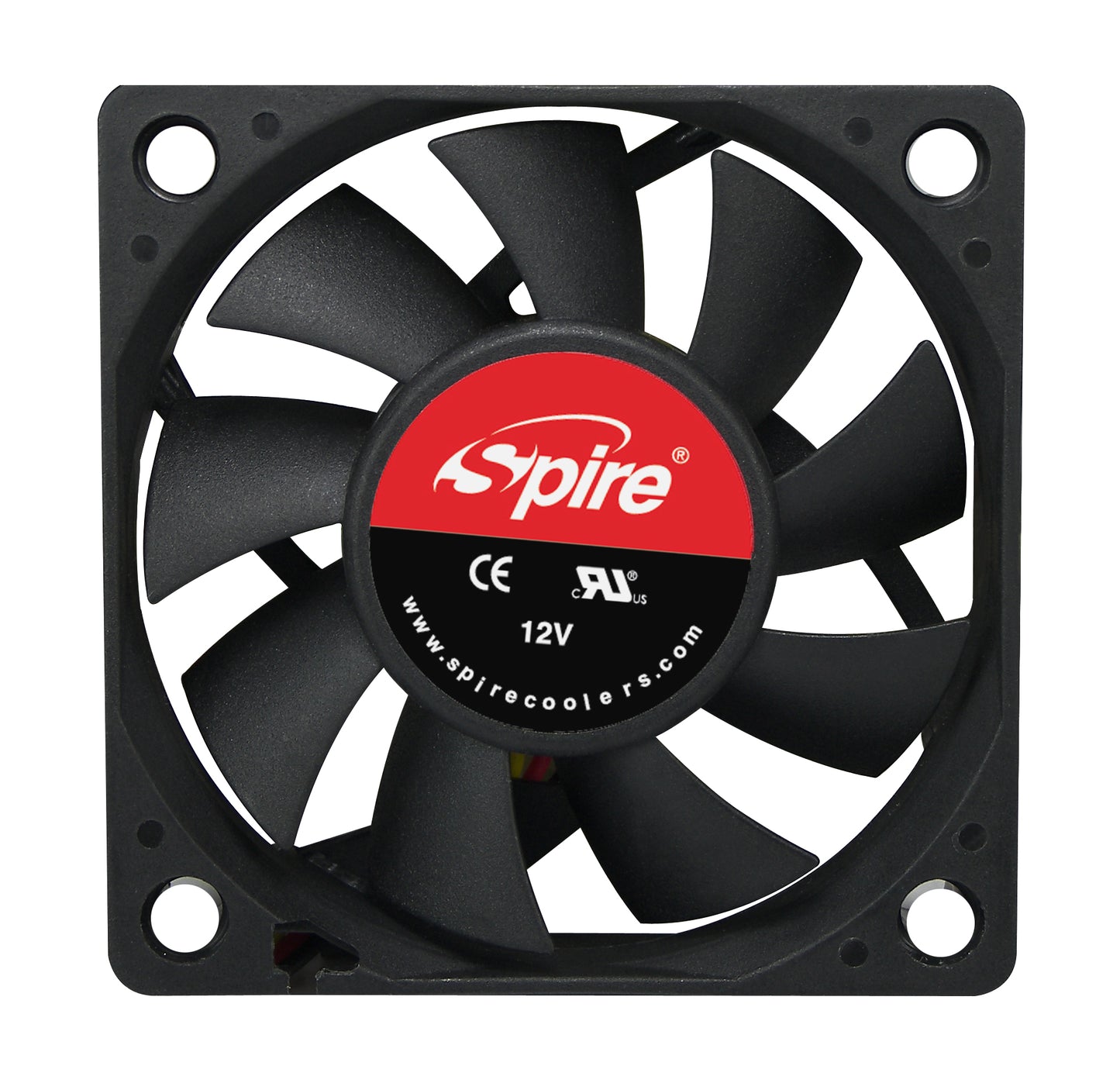

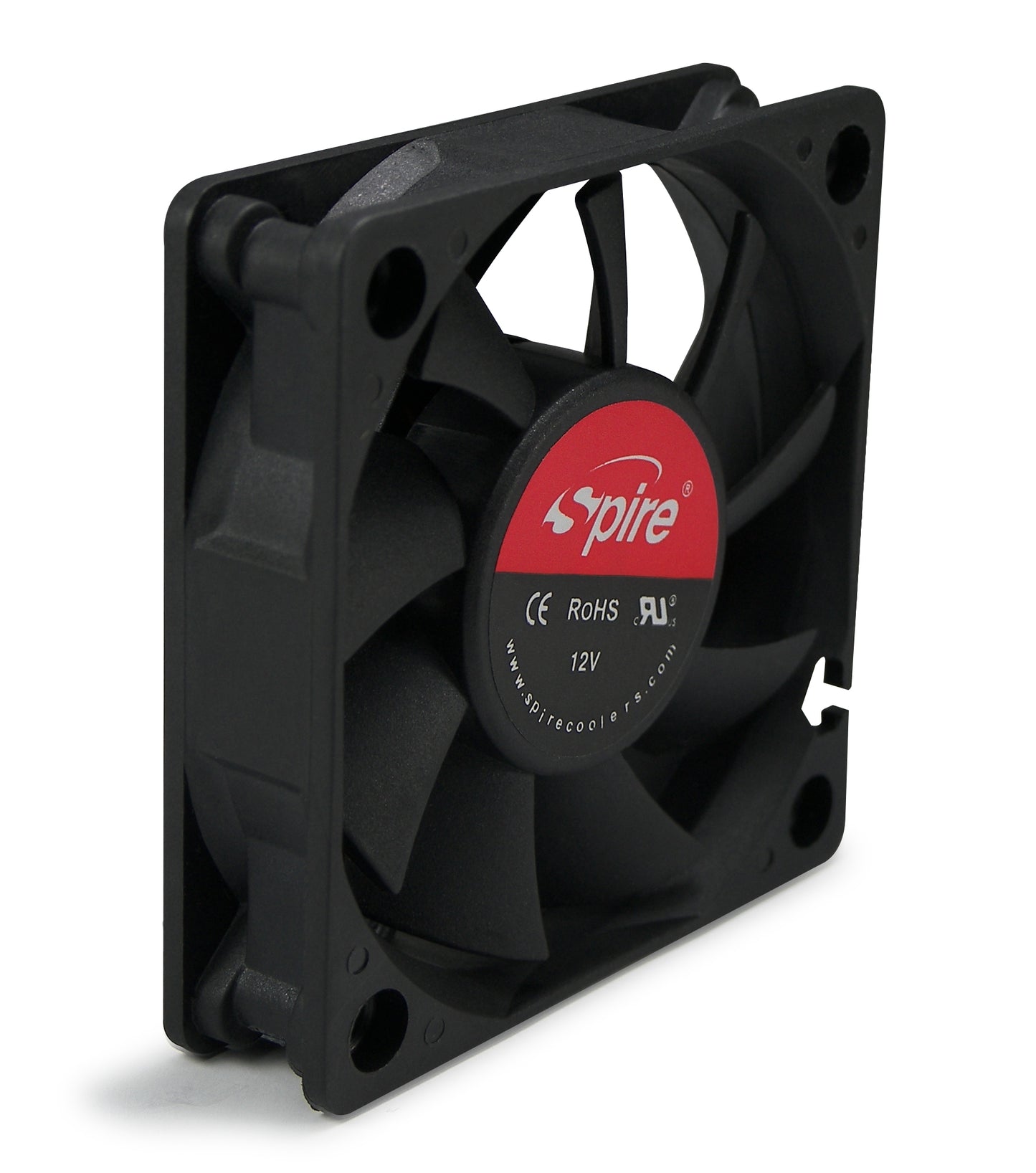

ORION 60X15 / SP06015B1M3
ORION 60X15 / SP06015B1M3
Couldn't load pickup availability
Good ventilation is mandatory for every hot electronic device, not to mention the enhanced performance and lifetime of your expensive components.The Orion standardized fan sizes make installation possible in a number of applications such as; computers, consumer electronics and home appliances.Spire is a leader in the field of component cooling and have been producing DC fan for over 14 years.The Orion fan Series are Silent and Powerful cooling fans balanced to perfection.
FEATURES
- Compatible with chassis, power supplies and CE appliances.
- Exhausts hot air or intakes cool air
- Simply fitted due to standardized sizes
- 3pin standardized connector for mainboard & PCB
- Long 30cm lead wire
- Silent, Ball bearing
- Great airflow and high air pressure
- 2 years manufacturer warranty
SPECIFICATIONS
| EAN |
6943051200446 |
|---|---|
| Brand |
Spire |
| Unit Weight (kg) |
0.04 |
| Unit Dimensions (cm) |
6 x 6 x 1,5 |
| Package Weight (kg) |
0.05 |
| Package Dimensions (cm) |
7.8 x6.5×3 |
| Accessories |
Orion 60×15 |
| AirFlow (CFM) |
16 |
| Application |
replace fan of cooler,second case fan or other purpose |
| Bearing Type |
Ball Bearing |
| Color |
Black |
| Connectors |
3 PIN Molex 2510 |
| Fan Type |
12V DC |
| Features |
Black square sleeve fan RoHs |
| LED Color |
NO |
| Life Expectancy (HRS) |
30000 |
| Noise Level (dBA) |
20 ~ 27 |
| Operating Temperature (°C) |
-10~70 |
| PWM(Pulse Width Modification) |
NO |
| Rated Current (A) |
0.17 |
| Rated Power (W) |
2.04 |
| Rated Speed (RPM) +/- 10% |
3600 ~ 4400 |
| Sound Level (DB) |
20 ,27 |
| Static Pressure mmH2O |
2.80 |
| Material |
PBT |
| Storage Temperature (°C) |
-40~70 |
| Packaging Includes |
Screw 4PCS |
| Packaging Type |
Yellow box |
| Warranty |
2 years |
-
