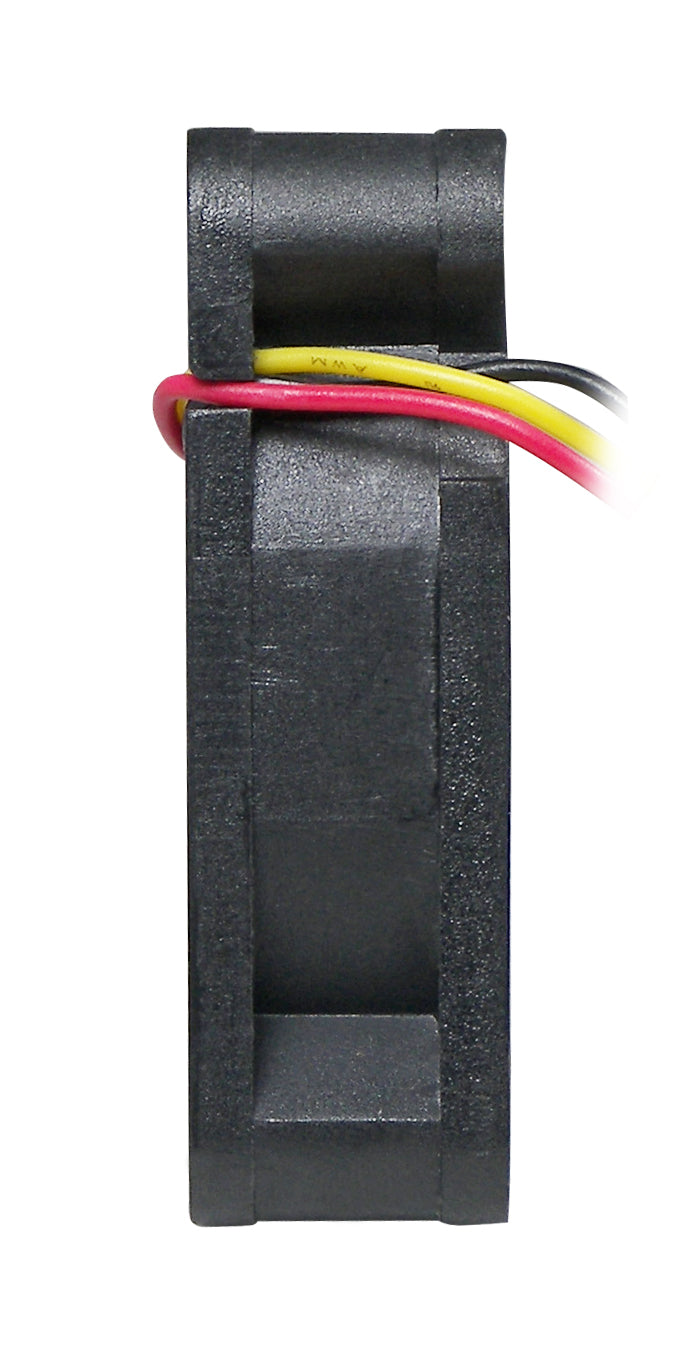

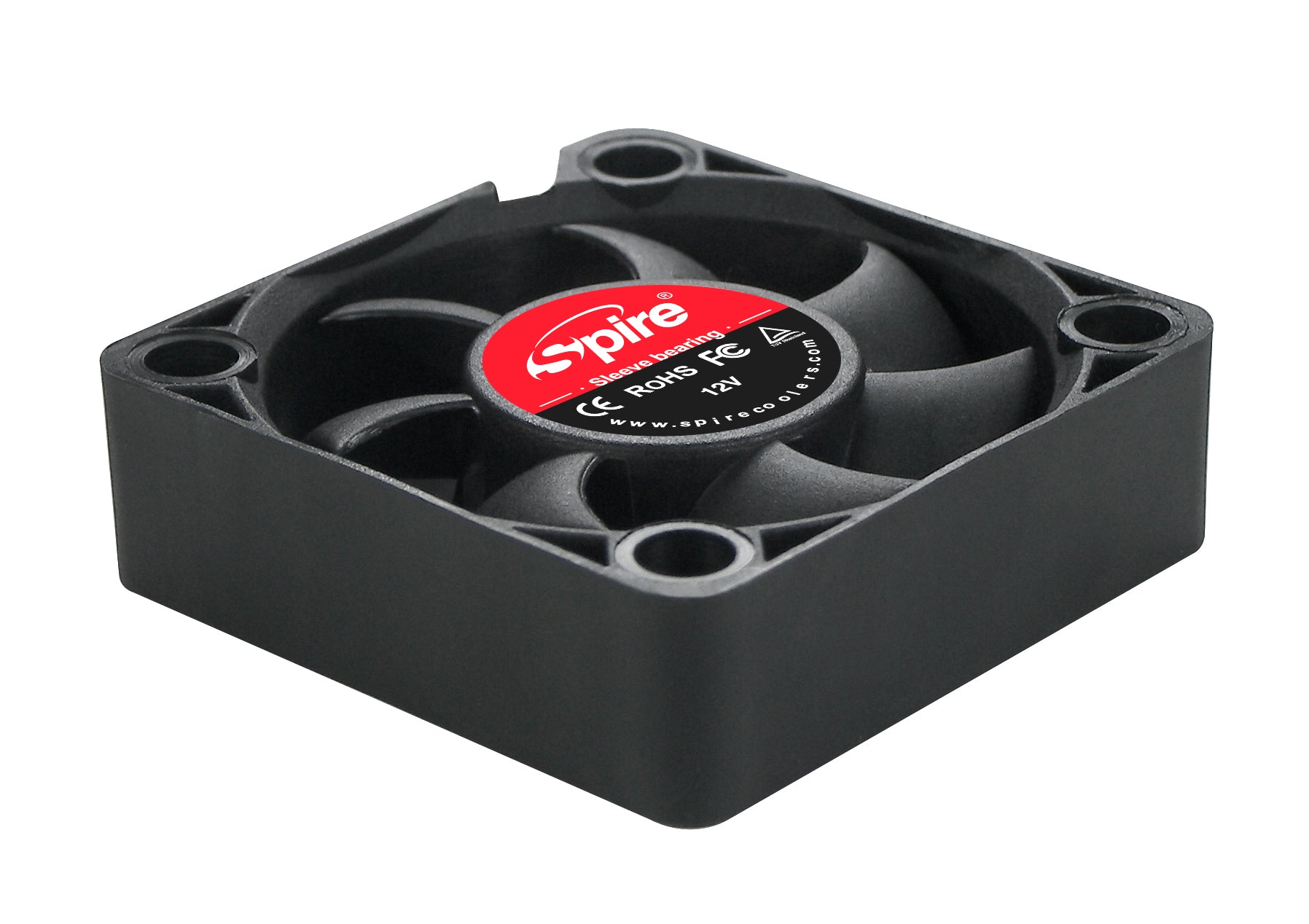

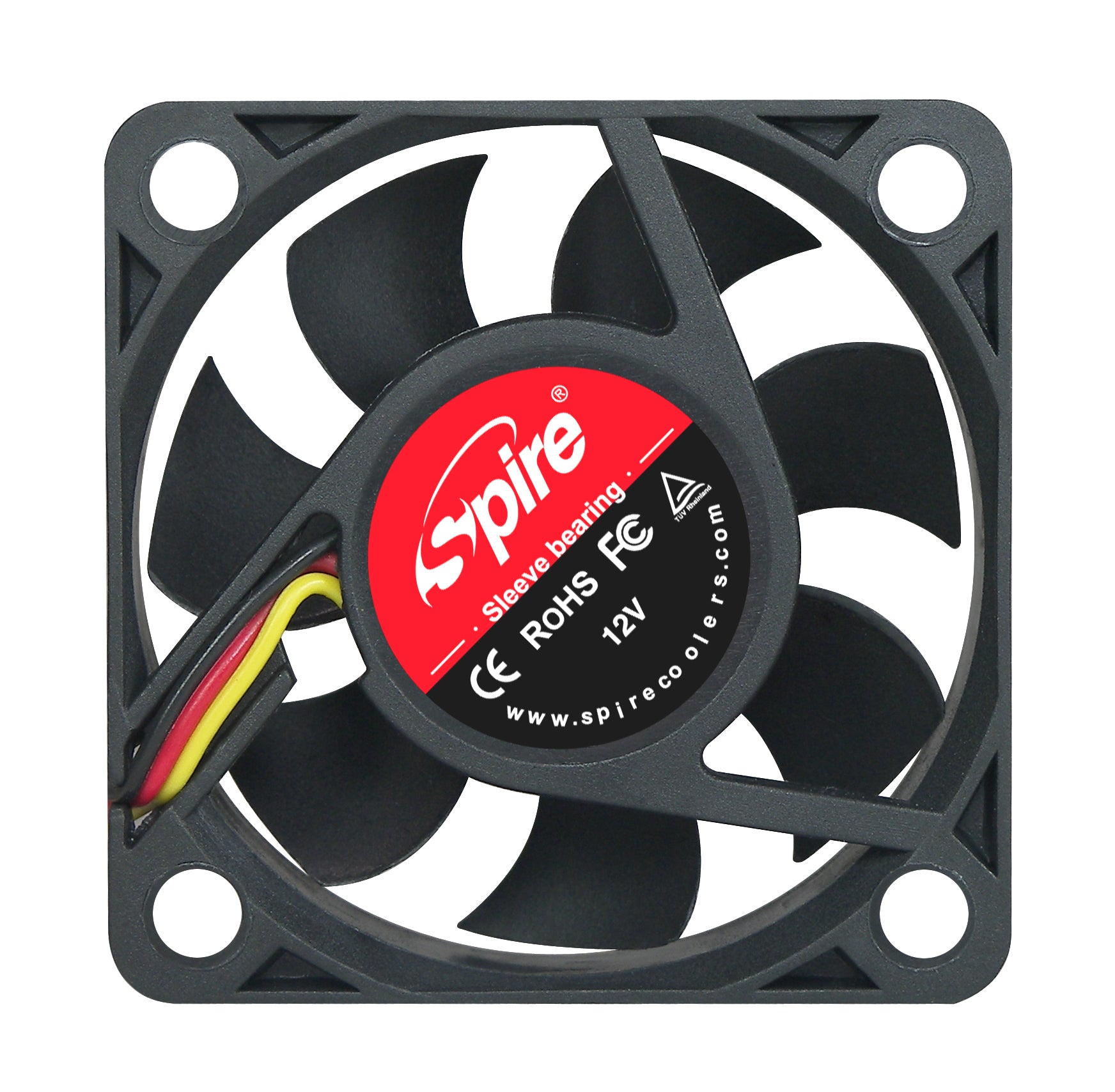

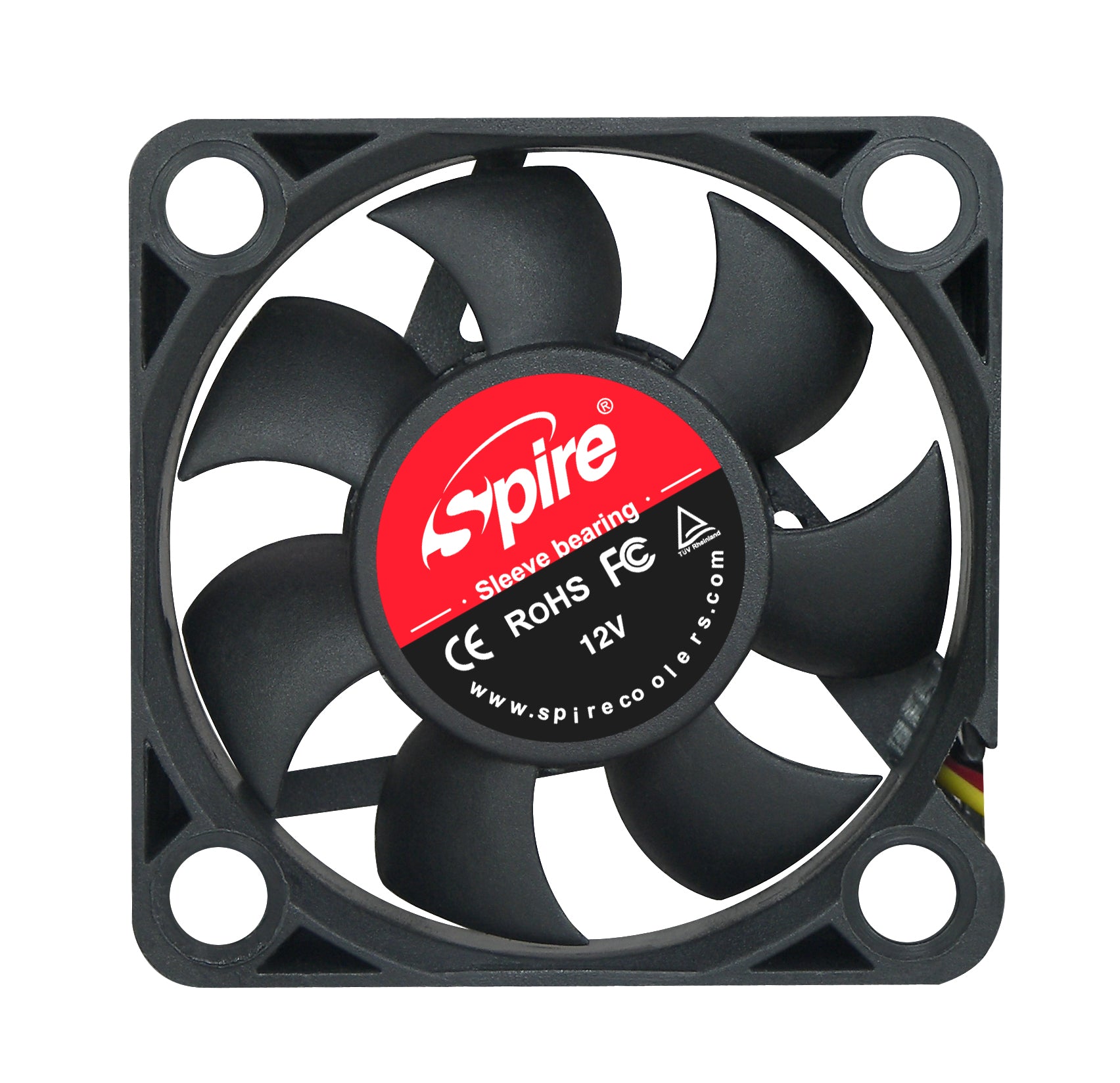

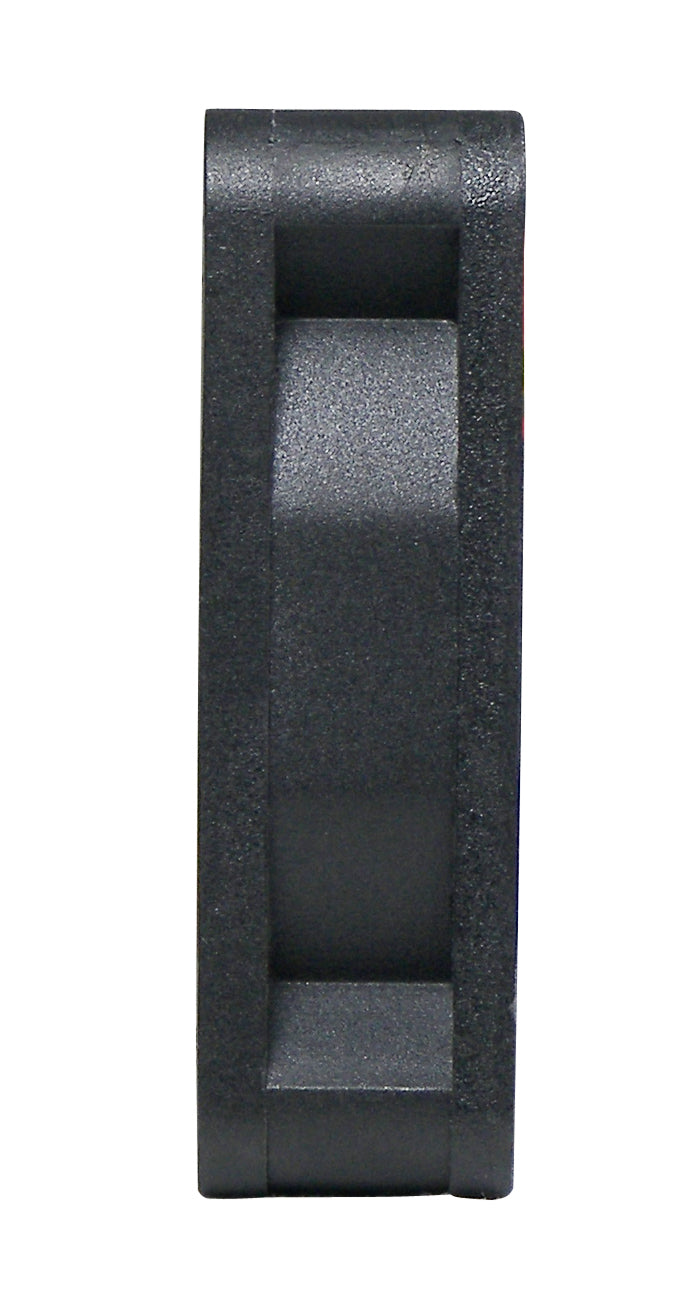

ORION 50X15 / SP05015S1M3
ORION 50X15 / SP05015S1M3
Good ventilation is mandatory for every hot electronic device, not to mention the enhanced performance and lifetime of your expensive components.The Orion standardized fan sizes make installation possible in a number of applications such as; computers, consumer electronics and home appliances.Spire is a leader in the field of component cooling and have been producing DC fan for over 14 years.The Orion fan Series are Silent and Powerful cooling fans balanced to perfection.
FEATURES
- Compatible with chassis, power supplies and CE appliances.
- Exhausts hot air or intakes cool air
- Simply fitted due to standardized sizes

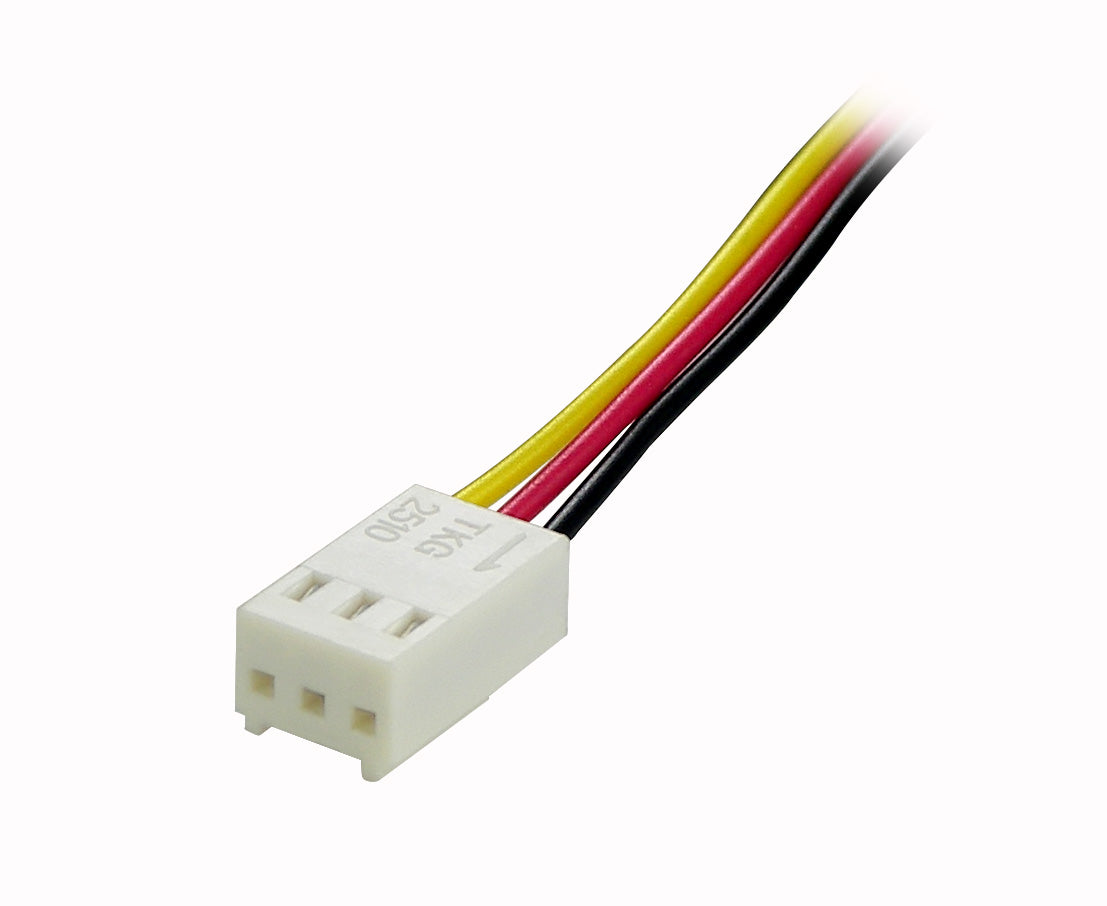

- 3pin standardized connector for mainboard & PCB
- Long 30cm lead wire
- Silent, Sleeve bearing
- Great airflow and high air pressure
- 2 years manufacturer warranty
SPECIFICATIONS
| EAN |
6943051200606 |
|---|---|
| Brand |
Spire |
| Unit Weight (kg) |
0.03 |
| Unit Dimensions (cm) |
5 x 5 x 1,5 |
| Package Weight (kg) |
0.04 |
| Package Dimensions (cm) |
7.8 x6.5×3 |
| Accessories |
Orion 50×15 |
| AirFlow (CFM) |
9 |
| Application |
replace fan of cooler,second case fan or other purpose |
| Bearing Type |
Sleeve Bearing |
| Color |
Black |
| Connectors |
3 PIN Molex 2510 |
| Fan Type |
12V DC |
| Features |
Black square sleeve fan RoHs |
| LED Color |
NO |
| Life Expectancy (HRS) |
30000 |
| Noise Level (dBA) |
20 ~ 30 |
| Operating Temperature (°C) |
-10~70 |
| PWM(Pulse Width Modification) |
NO |
| Rated Current (A) |
0.15 |
| Rated Power (W) |
1.8 |
| Rated Speed (RPM) +/- 10% |
4400 ~ 5200 |
| Static Pressure mmH2O |
2.25 |
| Material |
PBT |
| Storage Temperature (°C) |
-40~70 |
| Packaging Includes |
Screw 4PCS |
| Packaging Type |
Yellow box |
| Warranty |
2 years |

-
